Deploying TESK

TESK uses the Kubernetes Batch API (Jobs) to schedule execution of TES tasks. This means that it should be possible to deploy TESK in any flavor of Kubernetes, but tests are currently only performed with Kubernetes, OpenShift, and Minikube. Follow these instructions if you wish to deploy a TES endpoint on your Native Cloud cluster, and please let us know if you deploy TESK in any new and interesting platform.

TESK currently does not use any other storage (DB) than Kubernetes itself. Persistent Volume Claims are used as a temporary storage to handle input and output files of a task and pass them over between executors of a task. Note that PVCs are destroyed immediately after task completion! This means your cluster will need to provide a ReadWriteMany StorageClass. Commonly used storage classes are NFS and CephFS.

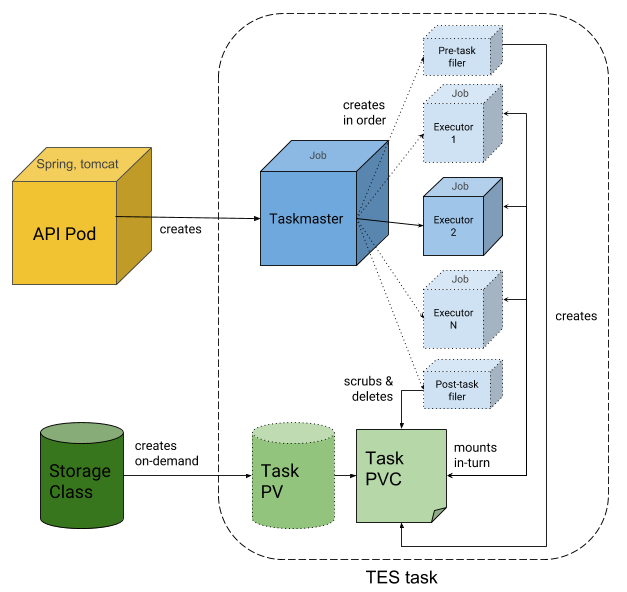

Here is an overview of TESK's architecture:

A Helm chart is provided for the convenient deployment of TESK. The chart is available in the TESK code repository.

Follow these steps:

  • Install Helm

  • Clone the TESK repository:

    git clone https://github.com/elixir-cloud-aai/TESK.git

  • Find the Helm chart at charts/tesk

  • Edit file values.yaml (see notes below)

  • Log into the cluster and install TESK with:

    helm install -n TESK-NAMESPACE TESK-DEPLOYMENT-NAME . \
  -f values.yaml
    • Replace TESK-NAMESPACE with the name of the namespace where you want to install TESK. If the namespace is not specified, the default namespace will be used.
    • The argument provided for TESK-DEPLOYMENT-NAME will be used by Helm to refer to the deployment, for example when upgrading or deleting the deployment. You can choose whichever name you like.

You should now have a working TESK instance! You can try to curl the address by running this command:

$ curl http://<tesk-url>/ga4gh/tes/v1/tasks
{
   "tasks" : []
}

Edit Chart values

In the TESK deployment documentation documentation there is a description of every value. Briefly, the most important are:

  • host_name: Will be used to serve the API.

  • storage: none or s3. If s3 is set, you must create two files: config and credentials. You can find templates in the s3-config/ folder:

    config:

    [default]
# Non-standard entry, parsed by TESK, not boto3
endpoint_url=<your_S3_endpoint>

    credentials:

    [default]
aws_access_key_id=<s3_access_key>
aws_secret_access_key=<s3_secret_access_key>

    These files will be retrieved during the deployment of the Helm Chart

  • storageClass: Specify the storage class. If left empty, TESK will use the default one configured in the Kubernetes cluster.

  • auth.mode: Enable (auth) or disable (noauth; default) authentication. When enabled, you must add those two keys: client_id and client_secret with your values:

    auth:
  client_id: <client_id>
  client_secret: <client_secret>

  • ftp: Which FTP credentials mode to use. Two options are supported: .classic_ftp_secret for basic authentication (username and password) or .netrc_secret for using a .netrc file.

    For the classic approach, you must write in values.yaml and add two values username and password:

    ftp:
  classic_ftp_secret: ftp-secret
  netrc_secret:
  username: <your_ftp_username>
  password: <your_ftp_password>

    For the .netrc approach, create a .netrc file in the ftp folder with the connections details in the correct format and set a name in ftp.netrc_secret:

    ftp:
  classic_ftp_secret:
  netrc_secret: netrc-secret

    You can find a template named .netrc-TEMPLATE in the ftp folder:

    machine ftp-private.ebi.ac.uk
login ftp-username
password ftp-password

Deploy with microk8s

This section outlines how to install TESK via microk8s as tested on an Ubuntu 22.04 machine.

First, install microk8s through the Snap Store and add yourself to the microk8s group::

sudo snap install microk8s --classic
sudo usermod -a -G microk8s $USER

Next, let's clone the TESK repository and move into it the Helm chart directory:

git clone https://github.com/elixir-cloud-aai/TESK.git
cd TESK/charts/tesk

Follow the deployment instructions to modify values.yaml as per your requirements.

Warning

You MUST set host_name. To make the service available through the internet, see further below on how to configure the service section.

Great - you are now ready to deploy TESK!

First, let's create a namespace:

microk8s kubectl create namespace NAMESPACE

where NAMESPACE is an arbitrary name for your resource group.

Now let's use Helm to install:

microk8s helm install -n NAMESPACE RELEASE_NAME . -f values.yaml

where RELEASE_NAME is an arbitrary name for this particular TESK release.

Congratulations - TESK should now be successfully deployed!

To find out the IP address at which TESK is available, run the following command:

microk8s kubectl get svc -n NAMESPACE

The output should look something like this:

NAME       TYPE        CLUSTER-IP        EXTERNAL-IP   PORT(S)    AGE
tesk-api   ClusterIP   123.123.123.123   <none>        8080/TCP   8s

Use the CLUSTER-IP and the PORT with the following template to construct the URL at which the service is available (and make sure to replace the dummy URL when you want to try out the calls below):

http://CLUSTER-IP:PORT/ga4gh/tes/v1

So, in this example case, we get the following URL:

http://123.123.123.123:8080/ga4gh/tes/v1

You can now test the installation with the following example call to get a list of tasks:

curl http://123.123.123.123:8080/ga4gh/tes/v1/tasks

If everything worked well, you should get an output like this:

{
  "tasks": []
}

Let's try to send a small task to TESK:

curl \
  -H "Accept: application/json"  \
  -H "Content-Type: application/json" \
  -X POST \
  --data '{"executors": [ { "command": [ "echo", "TESK says: Hello World" ], "image": "alpine" } ]}' \
  "http://123.123.123.123:8080/ga4gh/tes/v1/tasks"

That should give you a task ID:

{
  "id" : "task-123ab456"
}

You can run the task list command from before again. Now the response should not be an empty list anymore. Rather, you should see something like this:

{
  "tasks" : [ {
    "id" : "task-123ab456",
    "state" : "COMPLETE"
  } ]
}

To get more details on your task, use the task ID from before in a call like this:

curl http://123.123.123.123:8080/ga4gh/tes/v1/tasks/TASK_ID?view=FULL

We can use jq to parse the results. Let's say we want to see the logs of the first (only, in this case) TES executor, we could do something like this:

$curl -s http://123.123.123.123:8080/ga4gh/tes/v1/tasks/task-123ab456?view=FULL  | jq '.logs[0].logs'

Which would give us an output like this:

[
  {
    "start_time": "2023-11-01T14:54:20.000Z",
    "end_time": "2023-11-01T14:54:25.000Z",
    "stdout": "TESK says: Hello World\n",
    "exit_code": 0
  }
]

Note that in the example, the API is only accessible internally. To make it accessible publicly, we need to properly configure the service section in values.yaml.

In particular, we would like to set the type to NodePort and then set an open port on the host machine at which the API is exposed. For example, with

service:
    type: NodePort
    node_port: 31567

Kubernetes will route requests coming in to port 31567 on the host machine to port 8080 on the pod.

Let's confirm this by upgrading the Helm chart and again inspecting the services in our namespace with:

microk8s helm upgrade -n NAMESPACE RELEASE_NAME . -f values.yaml
microk8s kubectl get svc -n NAMESPACE

We should get an output like this:

NAME       TYPE       CLUSTER-IP        EXTERNAL-IP   PORT(S)          AGE
tesk-api   NodePort   123.123.123.111   <none>        8080:31567/TCP   5s

Indeed, the port section changed as expected. Now, note that the CLUSTER-IP also changed. However, this is not a problem as Kubernetes will manage the routing, so we don't really need to know the CLUSTER-IP. Instead, now we can use the hostname (or IP) of the host machine, together with the port we set to call our TES API from anywhere:

curl http://HOST_NAME_OR_IP:31567/ga4gh/tes/v1/tasks

Of course you need to make sure that the port you selected is opened for public access. This will depend on your router/firewall settings.

If you would like to tear down the TESK service, simply run:

microk8s helm uninstall RELEASE_NAME -n NAMESPACE
